Non-Insulated Ring Terminal (22-16 AWG)

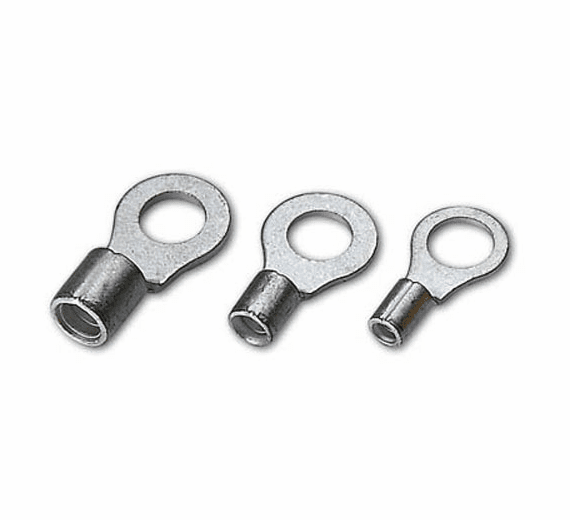

Non-Insulated Ring Terminal (3/8", 22-16 AWG)
DIMENSIONS:
https://www.connectorconcepts.comnorite322aw.html
$0.11
Non-Insulated Ring Terminal (22-16 AWG)
Non-Insulated Ring Terminal (3/8", 22-16 AWG)
| MANUFACTURER: | SGE |
| MANUFACTURER ITEM #: | R1-10NB |
| DESCRIPTION: | Non-Insulated Ring Terminals (Brazed Seam) |
| WIRE RANGE: | 22-16 AWG |
| STUD SIZE: | 3/8" |
| Ød2 | B | F | L | E | Ød | ØD | T |
|---|---|---|---|---|---|---|---|
| 10.5 mm | 13.6 mm | 13.9 mm | 25.7 mm | 5.0 mm | 1.7 mm | 3.4 mm | 0.75 mm |
https://www.connectorconcepts.comnorite322aw.html
$0.11
Product Description
| MANUFACTURER: | SGE |
| MANUFACTURER ITEM #: | R1-10NB |
| DESCRIPTION: | Non-Insulated Ring Terminals (Brazed Seam) |
| WIRE RANGE: | 22-16 AWG |
| STUD SIZE: | 3/8" |
| Ød2 | B | F | L | E | Ød | ØD | T |
|---|---|---|---|---|---|---|---|
| 10.5 mm | 13.6 mm | 13.9 mm | 25.7 mm | 5.0 mm | 1.7 mm | 3.4 mm | 0.75 mm |
