Bussmann 15250 Battery Disconnect Switch, Sealed
MANUFACTURER: Eatons Bussmann
MANUFACTURER ITEM #: 15250-3LR
DESCRIPTION:    Battery Disconnect Switch APPLICATIONS:    A non-fused current interrupt disconnect designed for opening the circuit between a battery and the complete electrical load of a battery-powered system. RATING:    400A continuous,. 50Vac/Vdc. Vehicle cranking and max. surge currents to 2000A (based on 20% duty cycle with ON times of 5 seconds max.). TEMPERATURE RATING:    40F (40C) to 150F (65C). BRANCH CIRCUIT PROTECTION: 2.5kA @ 12Vdc (Series 121 & 124 -01 sealed & Series 123 w/plastic cover) TERMINATION:    1/2-13 Copper alloy stud. TORQUE RATING:    420 in-lbs (47.5Ntm) max. MOUNTING TORQUE RATING:     With mounting brackets: 48 in-lbs (5.4Ntm) max; without mounting brackets: 10 in-lbs (1.1Ntm) max.

http://connectorconcepts.combu15badiswse1.html
$145.00
click image to enlarge

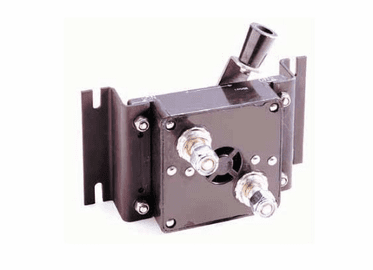

Bussmann 15250 Battery Disconnect Switch, Sealed

Item Number:
15250-3LR
Manufacturer:
Eaton's Bussmann
DATA SHEET
Price:
$145.00
Quantity Discount Pricing Available!
1 - 3$145.00 ea.4 - 9$128.00 ea.
10+$107.50 ea.
Quantity:


Product Description

MANUFACTURER: Eatons Bussmann
MANUFACTURER ITEM #: 15250-3LR


DESCRIPTION:    Battery Disconnect Switch

APPLICATIONS:    A non-fused current interrupt disconnect designed for opening the circuit between a battery and the complete electrical load of a battery-powered system.

RATING:    400A continuous,. 50Vac/Vdc. Vehicle cranking and max. surge currents to 2000A (based on 20% duty cycle with ON times of 5 seconds max.).

TEMPERATURE RATING:    40F (40C) to 150F (65C).

BRANCH CIRCUIT PROTECTION: 2.5kA @ 12Vdc (Series 121 & 124 -01 sealed & Series 123 w/plastic cover)

TERMINATION:    1/2-13 Copper alloy stud.

TORQUE RATING:    420 in-lbs (47.5Ntm) max.

MOUNTING TORQUE RATING:     With mounting brackets: 48 in-lbs (5.4Ntm) max; without mounting brackets: 10 in-lbs (1.1Ntm) max.
