Eaton's Bussmann
ATC Fuse Panels w/ Fuse Cover
Bussmann 15712 Rear Terminal ATC Fuse Panel, 16 position, w/Fuse Cover
MANUFACTURER: Eaton's Bussmann
MANUFACTURER ITEM #: 15712-10/06-21A

The Rear Terminal ATC® Fuse Panel (RTA) is a rear-fed panel with high component retention, which makes it an ideal choice for high vibration environments including construction, agriculture, bus, RV, heavy trucking equipment, etc. It is available in multiple lengths and internal bussing configurations. This allows for up to three separate power input circuits and 32 individual output circuits.


SPECIFICATIONS: INPUT TERMINAL RATING:    1/4-20 stud; Quick-connect terminals provided on middle bus (Series 15713). 200A max total input for unit OUTPUT TERMINAL RATING:    30A max load per circuit TEMPERATURE RATING:    –40°F (–40°C) to 260°F (125°C) MATERIALS:    Black thermoplastic TERMINATION:    Delphi Packard Pack-Con® Series 3 & 5.* Input Wire Size: #4-6 AWG OUTPUT WIRE SIZE:    #10-16 AWG TORQUE RATING:    50 in-lbs (5.6N•m) max MOUNTING TORQUE RATING:    #10-32 threaded inserts, 24 in-lbs (2.7N•m) max torque


OPTIONS: POSITIONS:    8-32 Circuits available SPLIT POWER:    Single, dual, or triple bus options COVER:    Splash-resistant covers available. Short cover for fuses only, and taller cover for use with circuit breakers LOCKS:    Secondary locks available for securing of output terminals (#15710-TP). (Comes in multiples of 8 positions. Must order multiple strips to cover length of selected RTA.) TOOLS:    Output terminal removal tool (#HT15710-01). Secondary lock removal tool (#HT15710-02).

*Electrical Terminals are NOT supplied by Cooper Bussmann.

https://www.connectorconcepts.combu15reteatcf7.html
$54.45
click image to enlarge

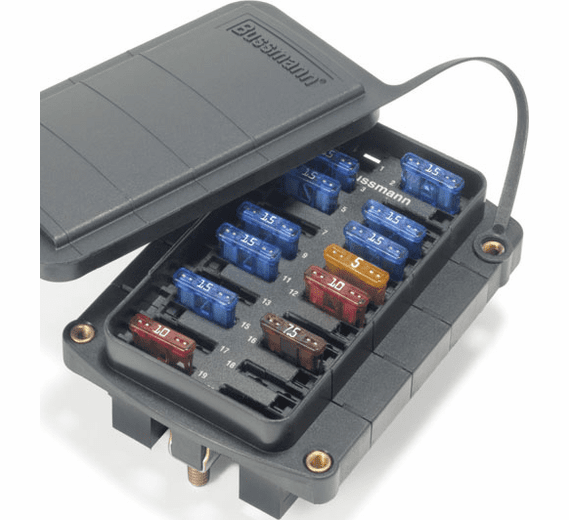

Bussmann 15712 Rear Terminal ATC Fuse Panel, 16 position, w/Fuse Cover

Item Number:
15712-10-06-21A
Manufacturer:
Eaton's Bussmann
Quantity Available:
328
DATA SHEET
Price:
$54.45
Quantity Discount Pricing Available!
1 - 9$54.45 ea.10 - 49$48.28 ea.
50+$44.89 ea.
Quantity:


Product Description

MANUFACTURER: Eaton's Bussmann
MANUFACTURER ITEM #: 15712-10/06-21A



The Rear Terminal ATC® Fuse Panel (RTA) is a rear-fed panel with high component retention, which makes it an ideal choice for high vibration environments including construction, agriculture, bus, RV, heavy trucking equipment, etc. It is available in multiple lengths and internal bussing configurations. This allows for up to three separate power input circuits and 32 individual output circuits.


SPECIFICATIONS:

INPUT TERMINAL RATING:    1/4-20 stud; Quick-connect terminals provided on middle bus (Series 15713). 200A max total input for unit

OUTPUT TERMINAL RATING:    30A max load per circuit

TEMPERATURE RATING:    –40°F (–40°C) to 260°F (125°C)

MATERIALS:    Black thermoplastic

TERMINATION:    Delphi Packard Pack-Con® Series 3 & 5.* Input Wire Size: #4-6 AWG

OUTPUT WIRE SIZE:    #10-16 AWG

TORQUE RATING:    50 in-lbs (5.6N•m) max

MOUNTING TORQUE RATING:    #10-32 threaded inserts, 24 in-lbs (2.7N•m) max torque


OPTIONS:

POSITIONS:    8-32 Circuits available

SPLIT POWER:    Single, dual, or triple bus options

COVER:    Splash-resistant covers available. Short cover for fuses only, and taller cover for use with circuit breakers

LOCKS:    Secondary locks available for securing of output terminals (#15710-TP). (Comes in multiples of 8 positions. Must order multiple strips to cover length of selected RTA.)

TOOLS:    Output terminal removal tool (#HT15710-01). Secondary lock removal tool (#HT15710-02).

*Electrical Terminals are NOT supplied by Cooper Bussmann.

Related items:

15711/15712 Female Loose Delphi Terminal 10 PACK
10 Terminals and 10 Seals come with one order

MANUFACTURER: Delphi




Terminals Gauges
  • 12020321: 16-14 GA
  • 12020400: 12-10 GA
No Seals Included. RTA includes sealed cover
As low as: $5.22
12020321
Choose Terminals:
