Non-Insulated Ring Terminal (6 AWG)
Non-Insulated Ring Terminal (1/2", 6 AWG)

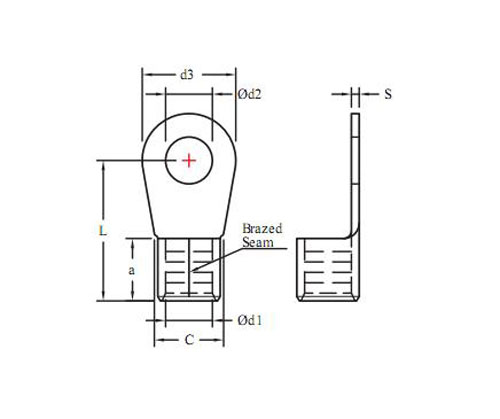

DIMENSIONS:
https://www.connectorconcepts.comnorite1.html
$0.48
Non-Insulated Ring Terminal (6 AWG)
Non-Insulated Ring Terminal (1/2", 6 AWG)
| MANUFACTURER: | SGE |
| MANUFACTURER ITEM #: | DR12-16NB |
| DESCRIPTION: | Non-Insulated DIN 46234 Ring Terminals (Brazed Seam) |
| WIRE RANGE: | 6 AWG |
| STUD SIZE: | 1/2" |
| a | c | Ød1 | Ød2 | d3 | L | s |
|---|---|---|---|---|---|---|
| 10.0 mm | 10.5 mm | 5.8 mm | 13.0 mm | 22.0 mm | 26.0 mm | 1.2 mm |
https://www.connectorconcepts.comnorite1.html
$0.48
Product Description
| MANUFACTURER: | SGE |
| MANUFACTURER ITEM #: | DR12-16NB |
| DESCRIPTION: | Non-Insulated DIN 46234 Ring Terminals (Brazed Seam) |
| WIRE RANGE: | 6 AWG |
| STUD SIZE: | 1/2" |
| a | c | Ød1 | Ød2 | d3 | L | s |
|---|---|---|---|---|---|---|
| 10.0 mm | 10.5 mm | 5.8 mm | 13.0 mm | 22.0 mm | 26.0 mm | 1.2 mm |
