Eaton's Bussmann - ATM Mini Circuit Breakers (Type 1)
Mini (ATM) Circuit Breaker, 25 amp, Auto Reset, Type 1
MANUFACTURER: Eaton's Bussmann
MANUFACTURER ITEM #: 21125-00

SINGLE POLE THERMAL TYPE BREAKERS RATING:    5-30A; 14Vdc (28V for Type III) INTERRUPT RATING:    150A @ 14Vdc (5-10A versions); 225A @ 14Vdc (15A version); 300A @ 14Vdc (20A version); 450A @ 14Vdc (25-30A versions) OPERATING TEMPERATURE RATING:    40F (40C) to 185F (85C) STORAGE TEMPERATURE RATING:    40F (40C) to 260F (125C) MATERIALS:    Grey UL-Rated 94V0 thermoplastic housing with metal cover: gold (Type I) or silver (Type II) MARKING:    Standard marking includes amp/voltage ratings, part number, and date code. OCR marking is available. TERMINATION:    Compatible with 280 Type fuse blocks using 0.32in. (8.1mm) centerline spacing COMPLIANCES:    SAE J553 Type I, Type II and Type III Circuit Breakers

http://connectorconcepts.commiacibr25ama.html
$1.80

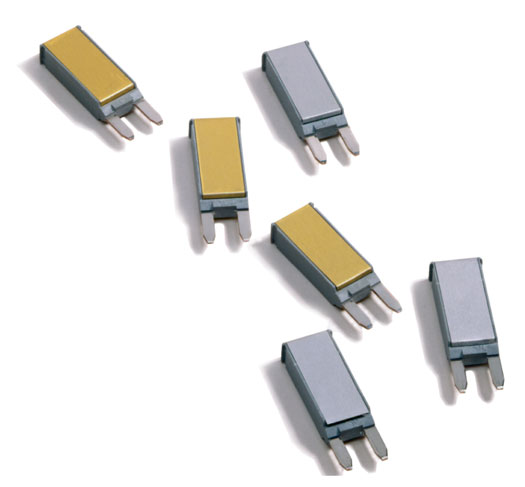

click image to enlarge

Mini (ATM) Circuit Breaker, 25 amp, Auto Reset, Type 1

Item Number:
21125-00
Manufacturer:
Eaton's Bussmann
Quantity Available:
162
DATA SHEET
Price:
$1.80
Quantity Discount Pricing Available!
1 - 24$1.80 ea.25 - 99$1.45 ea.
100+$1.30 ea.
Quantity:


Product Description

MANUFACTURER: Eaton's Bussmann
MANUFACTURER ITEM #: 21125-00



SINGLE POLE THERMAL TYPE BREAKERS

RATING:    5-30A; 14Vdc (28V for Type III)

INTERRUPT RATING:    150A @ 14Vdc (5-10A versions); 225A @ 14Vdc (15A version); 300A @ 14Vdc (20A version); 450A @ 14Vdc (25-30A versions)

OPERATING TEMPERATURE RATING:    40F (40C) to 185F (85C)

STORAGE TEMPERATURE RATING:    40F (40C) to 260F (125C)

MATERIALS:    Grey UL-Rated 94V0 thermoplastic housing with metal cover: gold (Type I) or silver (Type II)

MARKING:    Standard marking includes amp/voltage ratings, part number, and date code. OCR marking is available.

TERMINATION:    Compatible with 280 Type fuse blocks using 0.32in. (8.1mm) centerline spacing

COMPLIANCES:    SAE J553 Type I, Type II and Type III Circuit Breakers
